N-D Poisson

This example demonstrates system for N-dimensional mixed Poisson equation can be set up.

Mixed Poisson equation is defined in the weak form as:

(1)\[\left( p^{(n - 1)}, q^{(n - 1)} \right)_\Omega + \left( \mathrm{d} p^{(n - 1)}, u^{(n)} \right)_\Omega = \int_{\partial \Omega} p^{(n - 1)} \wedge \star u^{(n)}\]

(2)\[\left( v^{(n)}, \mathrm{d} q^{(n - 1)} \right)_\Omega = \left( v^{(n)}, f^{(n)} \right)_\Omega\]

from time import perf_counter
from typing import Sequence

import matplotlib.pyplot as plt
import numpy as np
import numpy.typing as npt
from fdg import (
    BasisSpecs,
    BasisType,
    CoordinateMap,
    DegreesOfFreedom,
    FunctionSpace,
    IntegrationMethod,
    IntegrationSpace,
    IntegrationSpecs,
    KForm,
    KFormSpecs,
    SpaceMap,
    compute_kform_mass_matrix,
    incidence_kform_operator,
    projection_kform_l2_dual,
    reconstruct,
    transform_kform_to_target,
)

The manufactured solution for the general N-dimensional case uses the following for the manufactured solution:

(3)\[u^{(n)}(x_1, \dots, x_n) = k \left(\prod\limits_{i=1}^n \cos\left( \frac{\pi}{2} x_i \right)\right) \mathrm{d} x_1 \wedge \dots \wedge \mathrm{d} x_n\]

This gives the forcing function:

(4)\[f^{(n)}(x_1, \dots, x_n) = - k n \left(\frac{\pi}{2}\right)^2 \left( \prod\limits_{i=1}^n \cos\left( \frac{\pi}{2} x_i \right)\right) \mathrm{d} x_1 \wedge \dots \wedge \mathrm{d} x_n\]

SCALE = 0.1


def manufactured_solution(*x: npt.NDArray[np.double]) -> npt.NDArray[np.double]:
    """Exact manufactured solution."""
    res = np.cos(x[0] * np.pi / 2)
    for v in x[1:]:
        res *= np.cos(v * np.pi / 2)
    return res * SCALE


def manufactured_source_poisson(*x: npt.NDArray[np.double]) -> npt.NDArray[np.double]:
    """Exact manufactured source term."""
    res = np.cos(x[0] * np.pi / 2)
    for v in x[1:]:
        res *= np.cos(v * np.pi / 2)
    res *= -((np.pi / 2) ** 2) * len(x)
    return res * SCALE

First the geometry of the space this will be solved on will be defined. For this case, we use the unit square, where the interior is deformed, while boundaries are the same. The mapping for each coordinate is based on Equation (5), with \(c\) being the parameter that determines the scale of deformation.

(5)\[x_i = \xi_i + c \prod\limits_{j=1}^n \left( 1 - {x_j}^2 \right) \sin \pi x_j\]

def disturbed_mapping(
    c: float, idx: int, *x: npt.NDArray[np.double]
) -> npt.NDArray[np.double]:
    """Return a perturbed map, where the boundaries are not affected, but the interior is.

    Parameters
    ----------
    c : float
        Strenght of the disturbance.

    idx : int
        Index of the input to base the mapping on.

    *x : array
        Coordinates where the mapping should be computed.

    Returns
    -------
    array
        Input coordinate ``idx``, but somewhat.
    """
    base = x[idx]
    d = np.full_like(base, c)
    for v in x:
        d *= (1 - v**2) * np.sin(np.pi * v)
    return base + d

Mappings for every coordinate are collected into a joined SpaceMap, which is then used to map \(k\)-form components between the reference domain and the physical domain.

def create_space_map(
    c: float, orders: Sequence[int], space: IntegrationSpace
) -> SpaceMap:
    """Create space map that are is disturbed."""
    func_space = FunctionSpace(
        *(BasisSpecs(BasisType.LAGRANGE_UNIFORM, order) for order in orders)
    )
    ndim = len(orders)
    points = np.meshgrid(
        *[np.linspace(-1, +1, order + 1) for order in orders], indexing="ij"
    )
    return SpaceMap(
        *[
            CoordinateMap(
                DegreesOfFreedom(func_space, disturbed_mapping(c, idim, *points)),
                space,
            )
            for idim in range(ndim)
        ]
    )

With these two utilities, we can start working on computing convergence of the FEM discretization in the \(L^2\)-norm

First we must define how integration will be done. Here two IntegrationSpace objects are defined - one for computing our results and another, finer, for computing the error.

With these discretizations defined, we can use previously written functions to create the space mappings.

def create_space_maps(order_integration, type_integration, ndim, dp):
    """Create integration spaces."""
    int_space = IntegrationSpace(
        *((IntegrationSpecs(order_integration, type_integration),) * ndim)
    )
    int_space_higher = IntegrationSpace(
        *((IntegrationSpecs(order_integration + dp, type_integration),) * ndim)
    )
    space_map = create_space_map(0.1, [5] * ndim, int_space)
    space_map_high = create_space_map(0.1, [5] * ndim, int_space_higher)
    return space_map, space_map_high

Along with the IntegrationSpace objects to define integration we must define the discretization of the \(k\)-forms using a FunctionSpace object.

With base function space defined, we can define some \(k\)-form specifications using KFormSpecs. These do not contain any degrees of freedom themselves, but provide information about the order and function spaces.

def create_kform_specs(type_basis, order_basis, ndim):
    """Create k-form specifications."""
    base_space = FunctionSpace(*((BasisSpecs(type_basis, order_basis),) * ndim))

    specs_u = KFormSpecs(ndim, base_space)
    specs_q = KFormSpecs(ndim - 1, base_space)
    return specs_u, specs_q

While for left side symmetry could be exploited, there’s no harm to compute it in full for this example. To that end, we first compute the two mass matrices for the two \(k\)-forms, then apply the incidence operators as needed.

Now that we have the required blocks, we can assemble the system matrix. Alternatively we could have used Schur’s complement to compute the solution, but for the sake of simplicity here we use the full dense solve.

def assemble_lhs(sm, specs_q, specs_u):
    """Crate the system matrix."""
    mq = compute_kform_mass_matrix(
        sm, specs_q.order, specs_q.base_space, specs_q.base_space
    )
    mu = compute_kform_mass_matrix(
        sm, specs_u.order, specs_u.base_space, specs_u.base_space
    )

    mu_e = incidence_kform_operator(specs_q, mu, right=True)
    et_mu = incidence_kform_operator(specs_q, mu, transpose=True)

    system_matrix = np.block(
        [
            [mq, et_mu],
            [mu_e, np.zeros_like(mu)],
        ]
    )
    return system_matrix

The right side of the Poisson equation can be computed from the “dual projection” of the manufactured source term on the function space.

def assemble_rhs(specs_u, specs_q, sm_h):
    """Assemble the system's RHS."""
    source_vals = projection_kform_l2_dual([manufactured_source_poisson], specs_u, sm_h)[
        0
    ]

    rhs = np.concatenate(
        (np.zeros(sum(specs_q.component_dof_counts)), source_vals.flatten())
    )
    return rhs

From here we can split solution vector into degrees of freedom of individual \(k\)-forms represented by KForm objects. To compute the \(L^2\) error, we need to reconstruct the computed solution, subtract the manufactured solution, then integrate the square of the error.

def reconstruct_error_l2(specs_q, specs_u, solution_dofs, ndim, sm_h):
    """Reconstruct the solution and compute the L2 error."""
    sol_q = KForm(specs_q)
    sol_u = KForm(specs_u)

    nq = sum(specs_q.component_dof_counts)

    sol_q.values[:] = solution_dofs[:nq]
    sol_u.values[:] = solution_dofs[nq:]

    u_dofs = DegreesOfFreedom(
        specs_u.get_component_function_space(0), sol_u.get_component_dofs(0)
    )
    # K-form computed values at integration nodes
    computed_values = transform_kform_to_target(
        ndim,
        sm_h,
        [reconstruct(u_dofs, *sm_h.integration_space.nodes())],
    )[0]
    # K-form exact values at integration nodes
    real_values = manufactured_solution(
        *[sm_h.coordinate_map(idx).values for idx in range(ndim)]
    )
    # Error
    err_l2 = np.sum(
        (computed_values - real_values) ** 2
        * sm_h.determinant
        * sm_h.integration_space.weights()
    )
    return err_l2

All the small building blocks discussed before can now be put together to form the error calculation function.

def compute_l2_error(
    order_integration: int,
    type_integration: IntegrationMethod,
    order_basis: int,
    type_basis: BasisType,
    ndim: int,
    dp: int,
) -> float:
    """Solve the N-dimensional Poisson equation and compute the L^2 error."""
    # Space maps
    sm, sm_h = create_space_maps(order_integration, type_integration, ndim, dp)
    # K-form specs
    specs_u, specs_q = create_kform_specs(type_basis, order_basis, ndim)
    # LHS of the system
    lhs = assemble_lhs(sm, specs_q, specs_u)
    # RHS
    rhs = assemble_rhs(specs_u, specs_q, sm_h)
    # Solve
    solution_dofs = np.linalg.solve(lhs, rhs)
    # Compute error squared
    err_l2 = reconstruct_error_l2(specs_q, specs_u, solution_dofs, ndim, sm_h)
    # Retur the error
    return float(np.sqrt(err_l2))

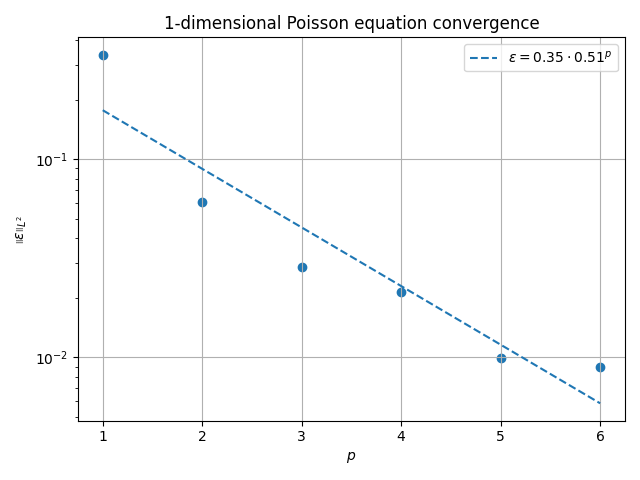

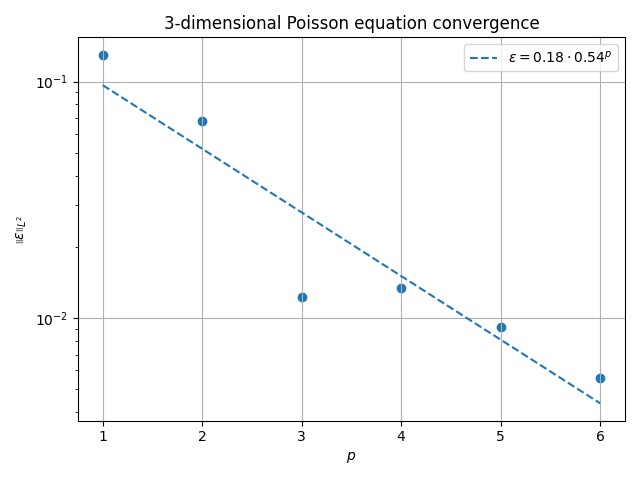

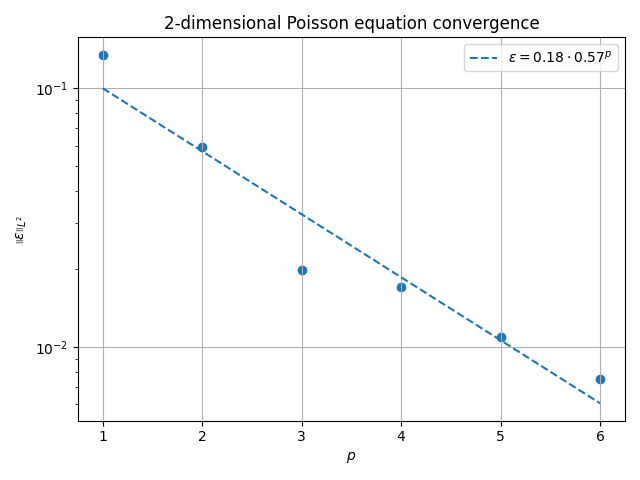

For this test, we will use Bernstein basis, Gauss integration rule, and the order difference of 1 between the lower and higher order integration rules.

BTYPE = BasisType.BERNSTEIN
ITYPE = IntegrationMethod.GAUSS
DP = 1

pvals = np.arange(1, 7)
evals = np.zeros(pvals.size)
tvals = np.zeros(pvals.size)
for ndim in range(1, 4):
    for ip, p in enumerate(pvals):
        pv = int(p)
        t0 = perf_counter()
        l2 = compute_l2_error(pv + 0, ITYPE, pv, BTYPE, ndim, DP)
        t1 = perf_counter()
        evals[ip] = l2
        tvals[ip] = t1 - t0

    k1, k0 = np.polyfit(pvals, np.log(evals), deg=1)
    c = np.exp(k0)
    b = np.exp(k1)

    fig, ax = plt.subplots()

    ax.scatter(pvals, evals)
    ax.plot(
        pvals,
        c * b**pvals,
        linestyle="dashed",
        label=f"$\\varepsilon = {c:.2g} \\cdot {b:.2g}^{{p}}$",
    )
    ax.set(
        yscale="log",
        xlabel="$p$",
        ylabel="$\\left|\\left| \\varepsilon \\right|\\right|_{ L^2 }$",
    )
    ax.grid()
    ax.legend()
    ax.set_title(f"{ndim}-dimensional Poisson equation convergence")
    fig.tight_layout()

plt.show()

•
•
•
